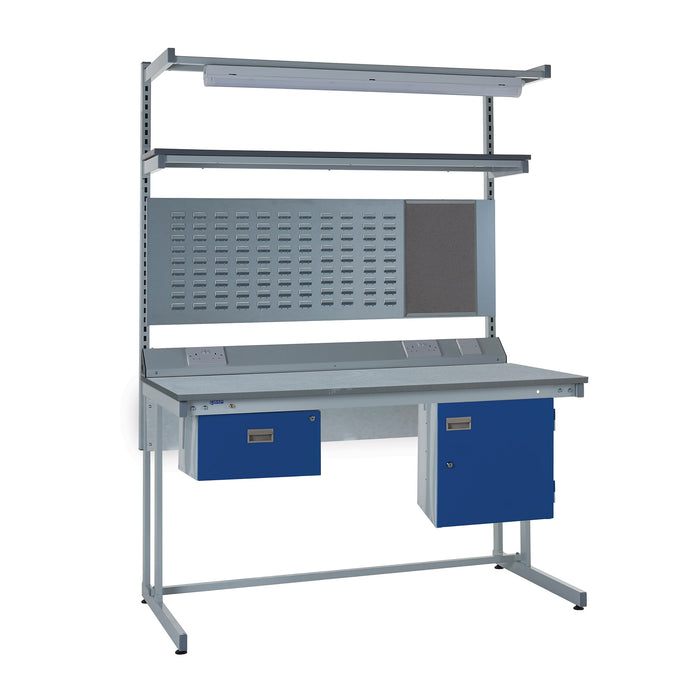

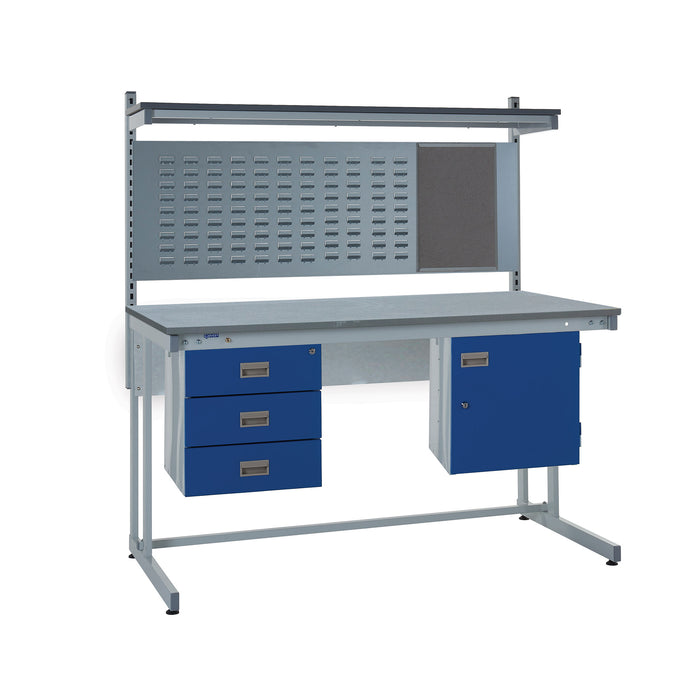

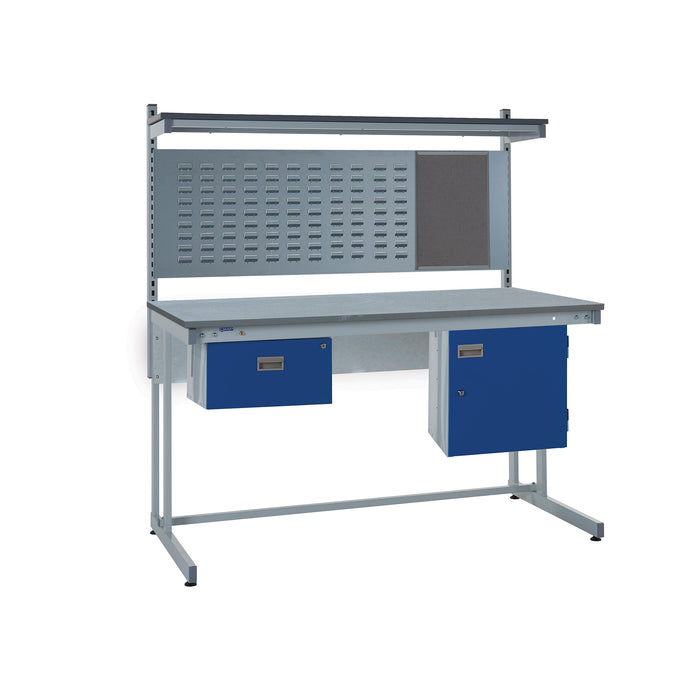

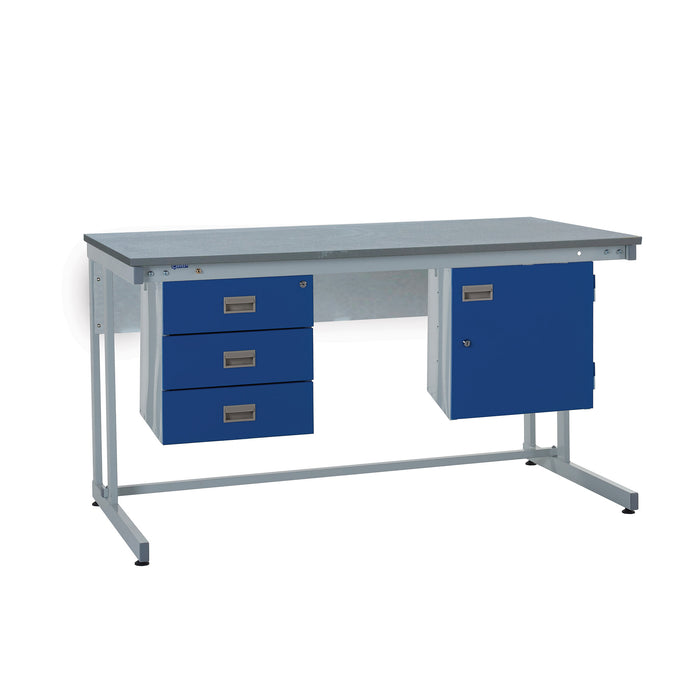

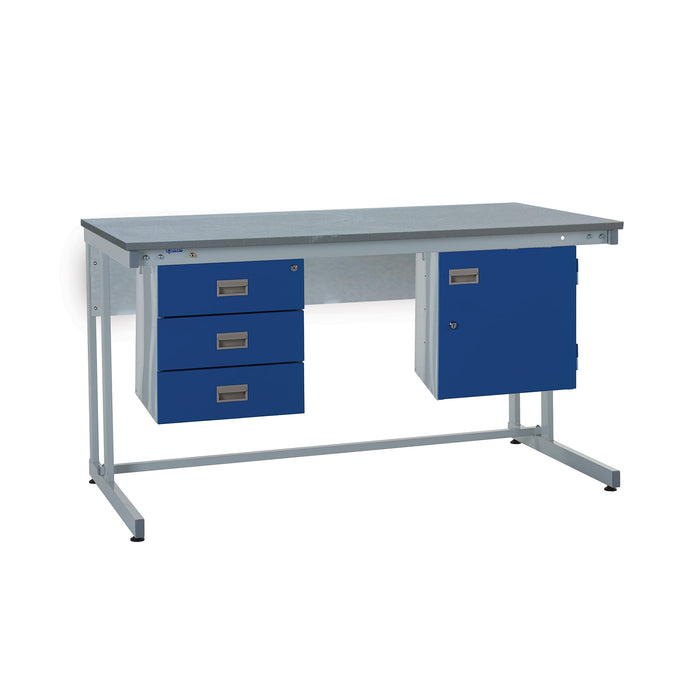

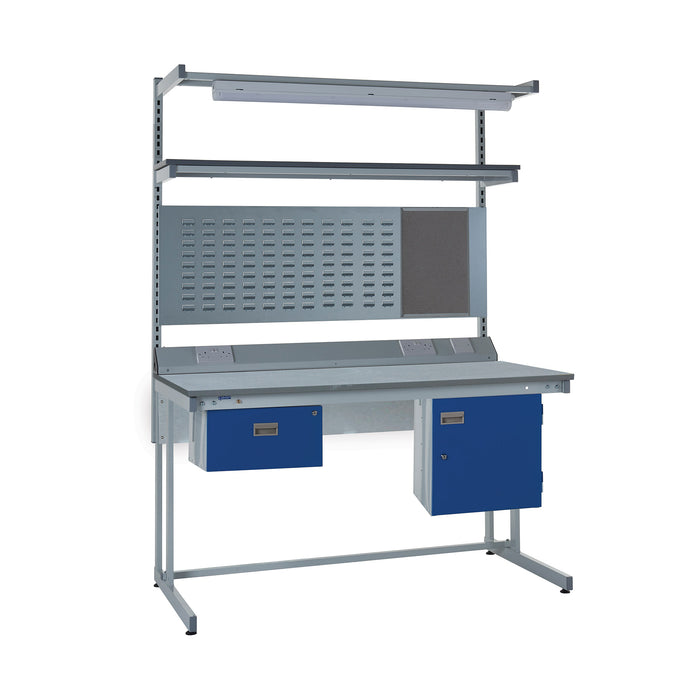

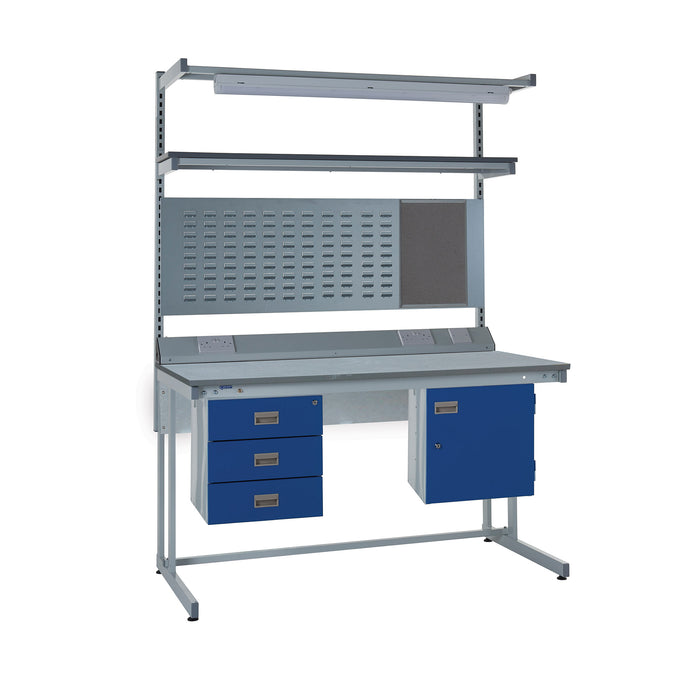

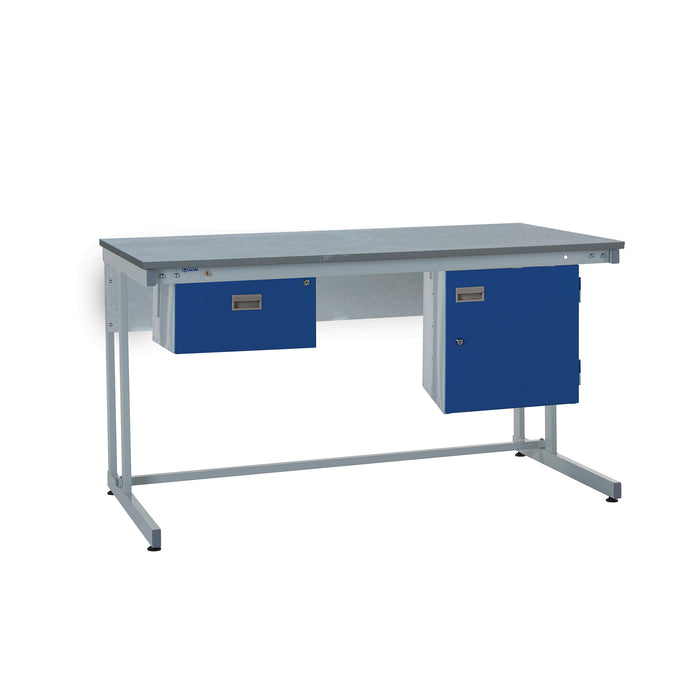

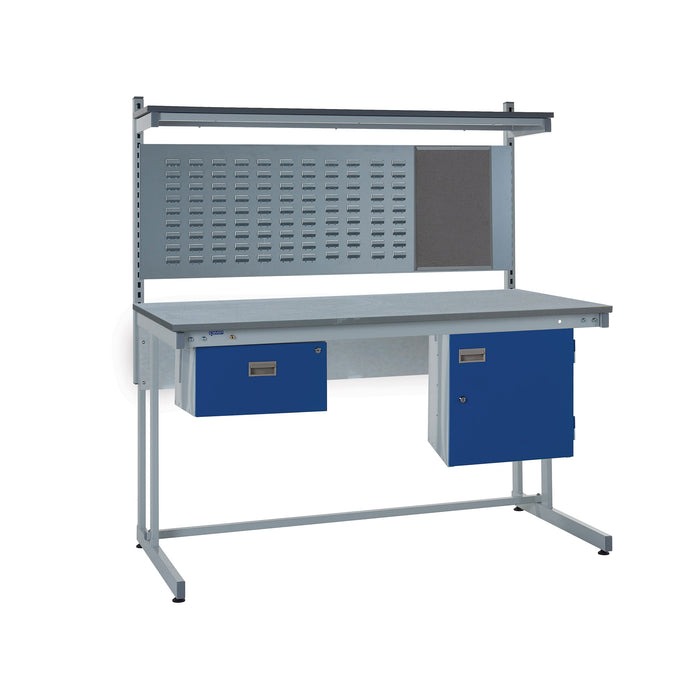

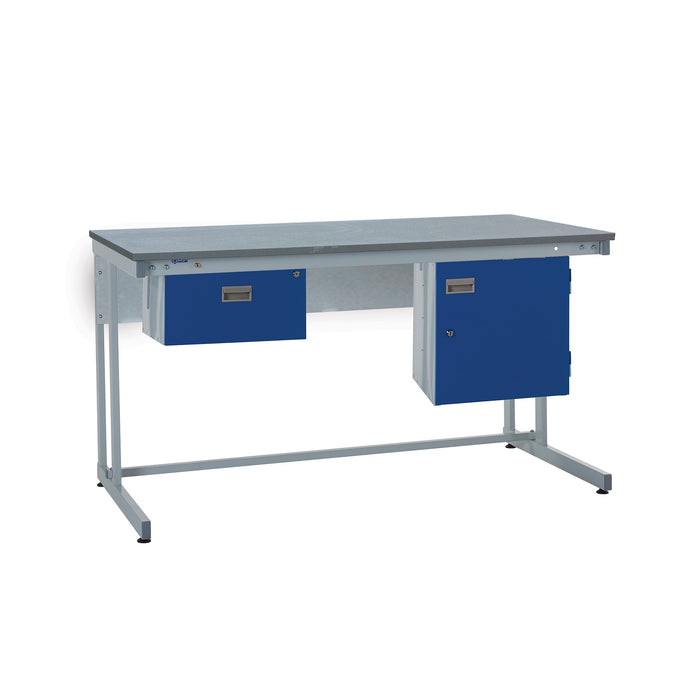

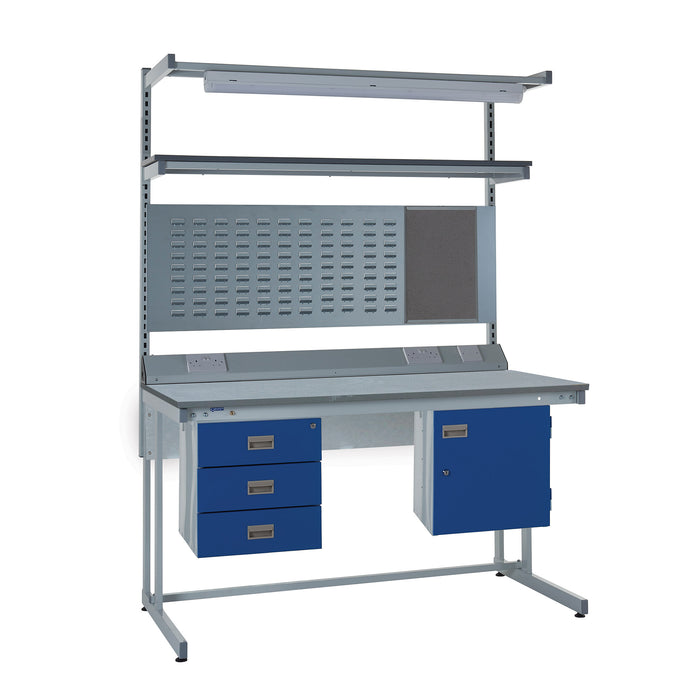

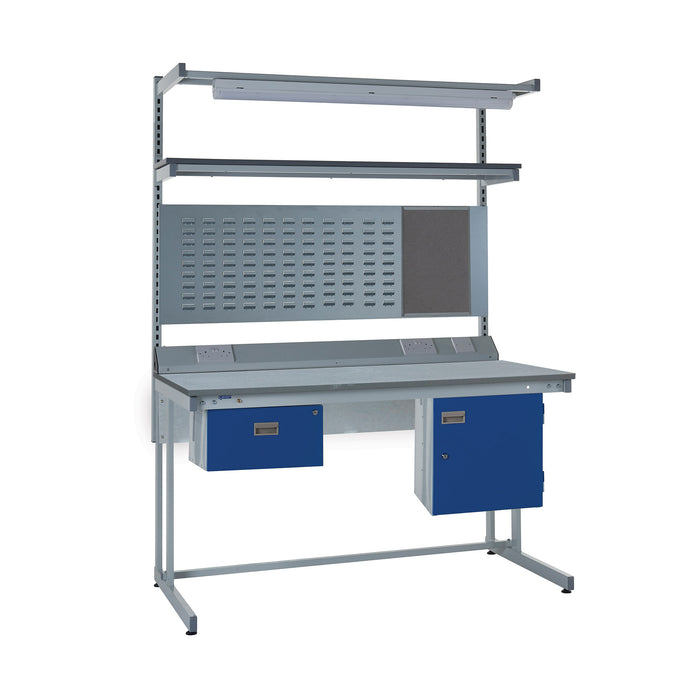

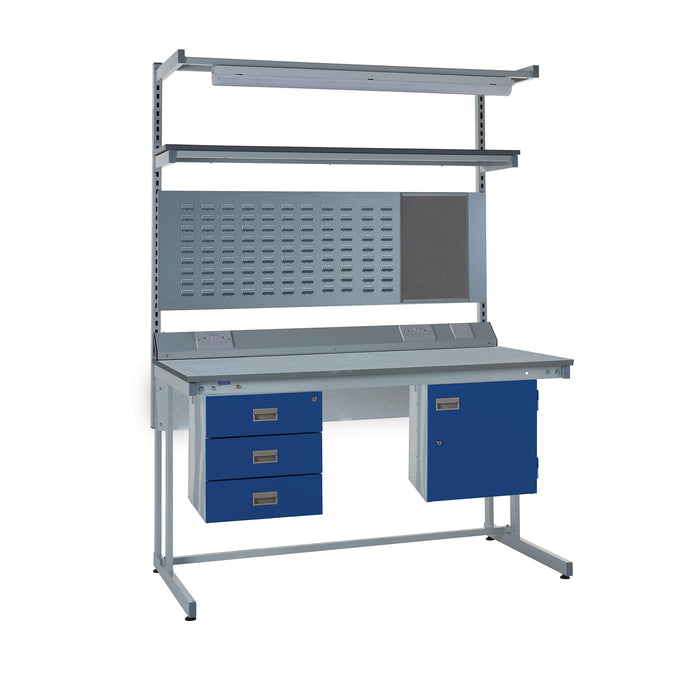

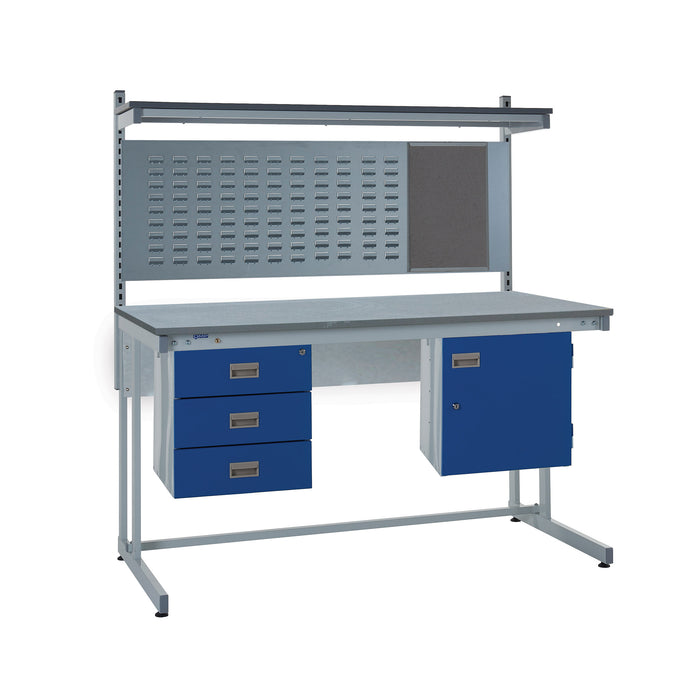

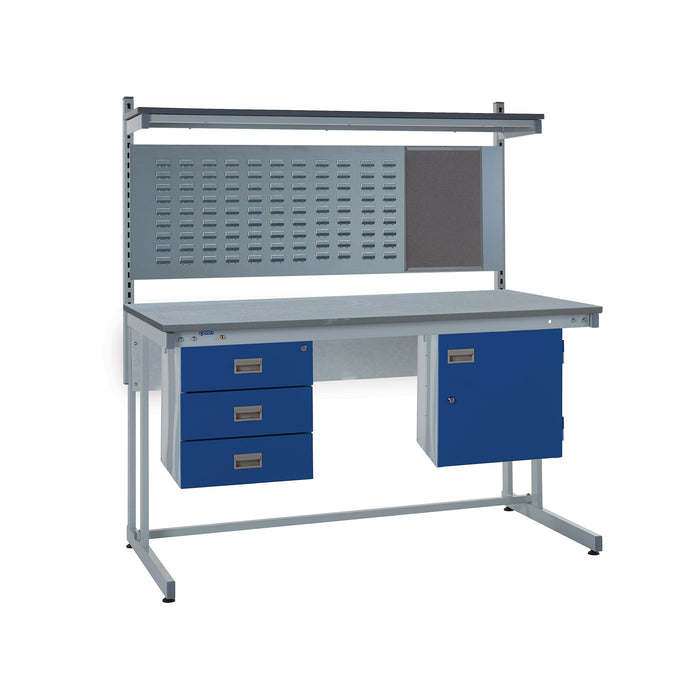

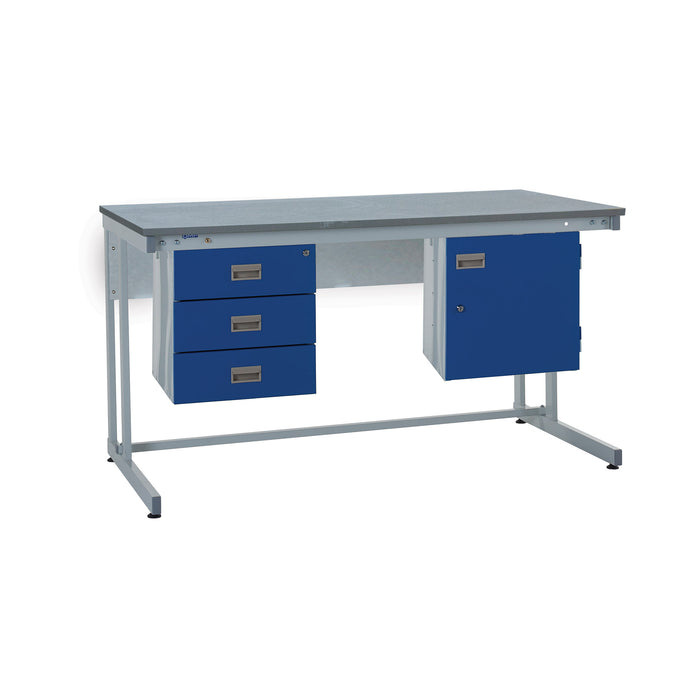

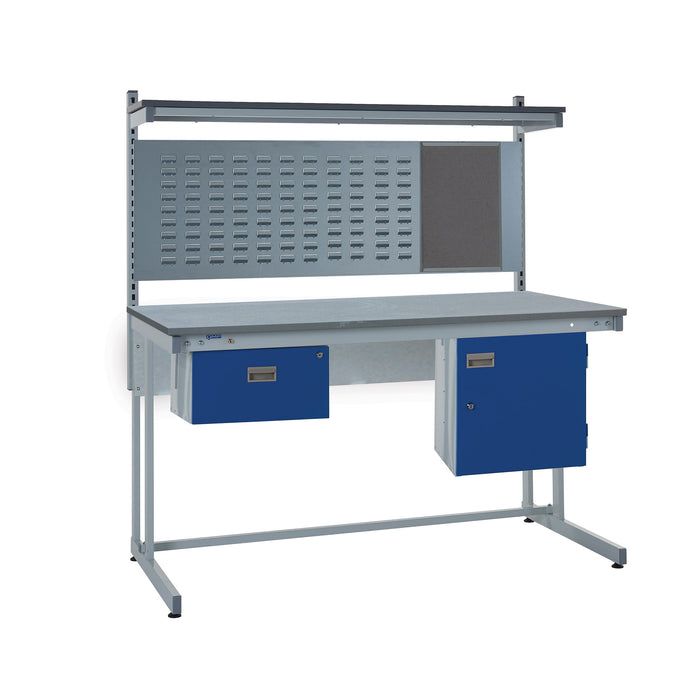

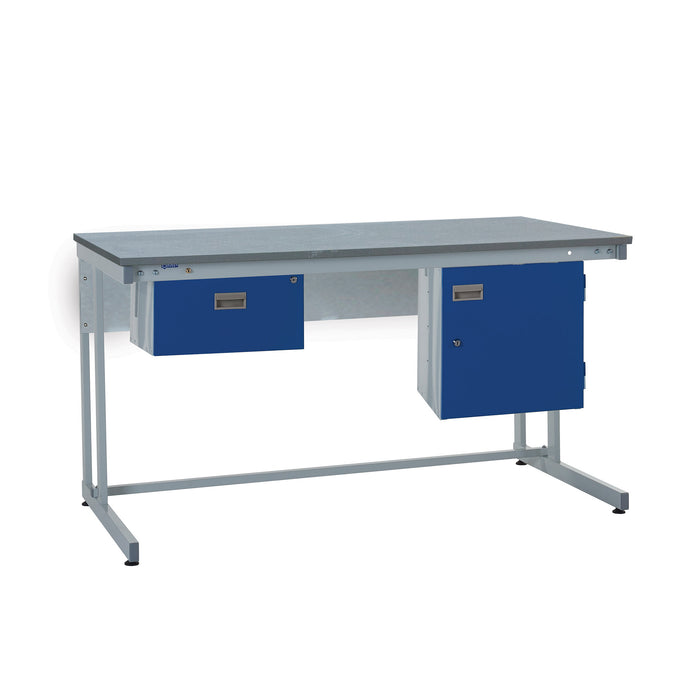

QMP® Cantilever ESD Workbenches - Lamstat Top

Description

The QMP® Cantilever ESD Workbench with Lamstat Top is specifically designed for use in environments where electrostatic discharge (ESD) protection is critical, such as electronics assembly, testing, and precision engineering.

Its cantilever design provides maximum legroom and user comfort, while the Lamstat ESD-resistant worktop ensures a safe, static-controlled workspace.

Built with a fully welded steel framework, this heavy-duty bench offers excellent stability and strength, with a high load capacity suitable for demanding industrial and technical applications. The powder-coated frame features Germ Guard Active Technology paint, delivering extra durability and hygiene protection. Proudly manufactured in the UK, it combines functionality, safety, and reliability.

  • Cantilever frame design for improved legroom and operator comfort.

  • Lamstat ESD-resistant worktop to prevent static discharge.

  • Fully welded heavy-duty steel construction for long service life.

  • Powder-coated framework with Germ Guard Active Technology paint.

  • High UDL load capacity for industrial and technical use.

  • Ideal for electronics, laboratories, and precision engineering environments.

  • Designed and manufactured in the UK by QMP®.

QMP® Cantilever ESD Workbenches - Lamstat Top

SKU 247D000321
£985.08 - £2,436.97
£985.08 (inc. VAT)
£985.08 - £2,436.97
£985.08 (inc. VAT)
£820.90 (ex. VAT)

The QMP® Cantilever ESD Workbench with Lamstat Top is specifically designed for use in environments where electrostatic discharge (ESD) protection is critical, such as electronics assembly, testing, and precision engineering.

Read More Read More

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • Shop Pay
  • Union Pay
  • Visa
Delivery: 3 - 5 Working Days

FREE UK Mainland Delivery

For Delivery to Ireland, Highlands and Islands please call 0303 3301 247

Key Features

Sizes Available (H × W × D):

  • Height: 840mm (also available in 760mm or 920mm)
  • Widths: 1200mm, 1500mm, 1800mm
  • Depths: 600mm, 750mm, 900mm

Choice of Worktops:

  • Neostat ESD Worktop (20mm thick)
  • Synthetic rubber-based material
  • Highly resilient, heat, solder, and flux resistant
  • Leakage resistance: 10⁶–10⁸ ohms
  • Conductive top layer, light grey or optional blue
  • Light reflection: 29%
  • Meets BS EN 61340-5-1:2001 standard

Lamstat ESD Worktop (20mm thick, 8mm Lamstat layer)

  • Heat and molten solder resistant
  • Leakage resistance: 10⁶–10⁸ ohms (BS IEC 61340-5-1 compliant)
  • Chemical resistance to solvents, acids, petrol, and oil
  • Abrasion and scratch resistance: Level 3 Class H (EN438)

Framework Construction:

  • Leg frame: 50 × 25mm MS ERW tube (1.5mm)
  • Top odd leg C-sections: 50 × 50 × 25mm (1.5mm)
  • Foot rail: 25 × 25mm MS ERW tube – 16 gauge

Paint & Finish:

  • Three-stage pre-treatment and phosphate coating
  • One coat epoxy polyester full gloss powder coating with Germ Guard antibacterial ingredient
  • Colour: Light Grey (RAL 7035), oven cured at 180°C

Workbench Features:

  • Levelling feet for uneven floor surfaces
  • Compatible with cupboards, drawers, and hanging bar accessories
  • Above-bench accessories can be mounted to support posts
  • Safe Working Load (SWL): 250kg UDL
  • Static dissipative accessories available
  • Lower shelves and extension benches available

Downloads

Spec Sheet

Description

The QMP® Cantilever ESD Workbench with Lamstat Top is specifically designed for use in environments where electrostatic discharge (ESD) protection is critical, such as electronics assembly, testing, and precision engineering.

Its cantilever design provides maximum legroom and user comfort, while the Lamstat ESD-resistant worktop ensures a safe, static-controlled workspace.

Built with a fully welded steel framework, this heavy-duty bench offers excellent stability and strength, with a high load capacity suitable for demanding industrial and technical applications. The powder-coated frame features Germ Guard Active Technology paint, delivering extra durability and hygiene protection. Proudly manufactured in the UK, it combines functionality, safety, and reliability.

  • Cantilever frame design for improved legroom and operator comfort.

  • Lamstat ESD-resistant worktop to prevent static discharge.

  • Fully welded heavy-duty steel construction for long service life.

  • Powder-coated framework with Germ Guard Active Technology paint.

  • High UDL load capacity for industrial and technical use.

  • Ideal for electronics, laboratories, and precision engineering environments.

  • Designed and manufactured in the UK by QMP®.

FAQ

What is the benefit of the Lamstat top?

The Lamstat top provides ESD protection, preventing electrostatic discharge that could damage sensitive electronic components during assembly or testing.

Is the Cantilever ESD Workbench strong enough for heavy use?

Yes. The workbench has a fully welded steel frame and a high UDL load capacity, making it suitable for both light electronics work and heavy industrial applications.

Can accessories be added to this workbench?

Yes. The QMP® Cantilever ESD Workbench can be supplied with a range of above and below-bench accessories to create a customized workstation.
